QUAM TG Series Ultrasonic Thickness Gauge will be the best choice for accomplishing measurement. It fits many kinds of metal, such as steel, cast steel, aluminum, plastic ,China glass, glass fiber and any other good conductors of ultrasonic.
TG520 could measure the thickness of metal covered with coating, the thickness of metal base will be showed.
Advanced Auto Probe Zeroing Calibration and Echo-Echo mode are applied on Upad X series. Taking more accurate measuring result and higher production rate to you.
QUAM TG Series is creative, it will supply a superior experience for users.
Measuring range: Normal : 0.75~400mm Coating : 2-25mm
Display accuracy: 0.1mm (> 100mm) / 0.01mm (<100mm)
Storage and interface: USB
Continuous working hours: 200hours
Net weight of the instrument: 0.7kg
Product gross weight (transport): 0.91kg
Product color: red and yellow
Product dimensions: 28.2x22.8x8.2 cm
OPERATION
Inco Style Menu
Showing different data modes
Stroll Bars Indicates Function
Free to change : Huge front and normal
FUNCTION

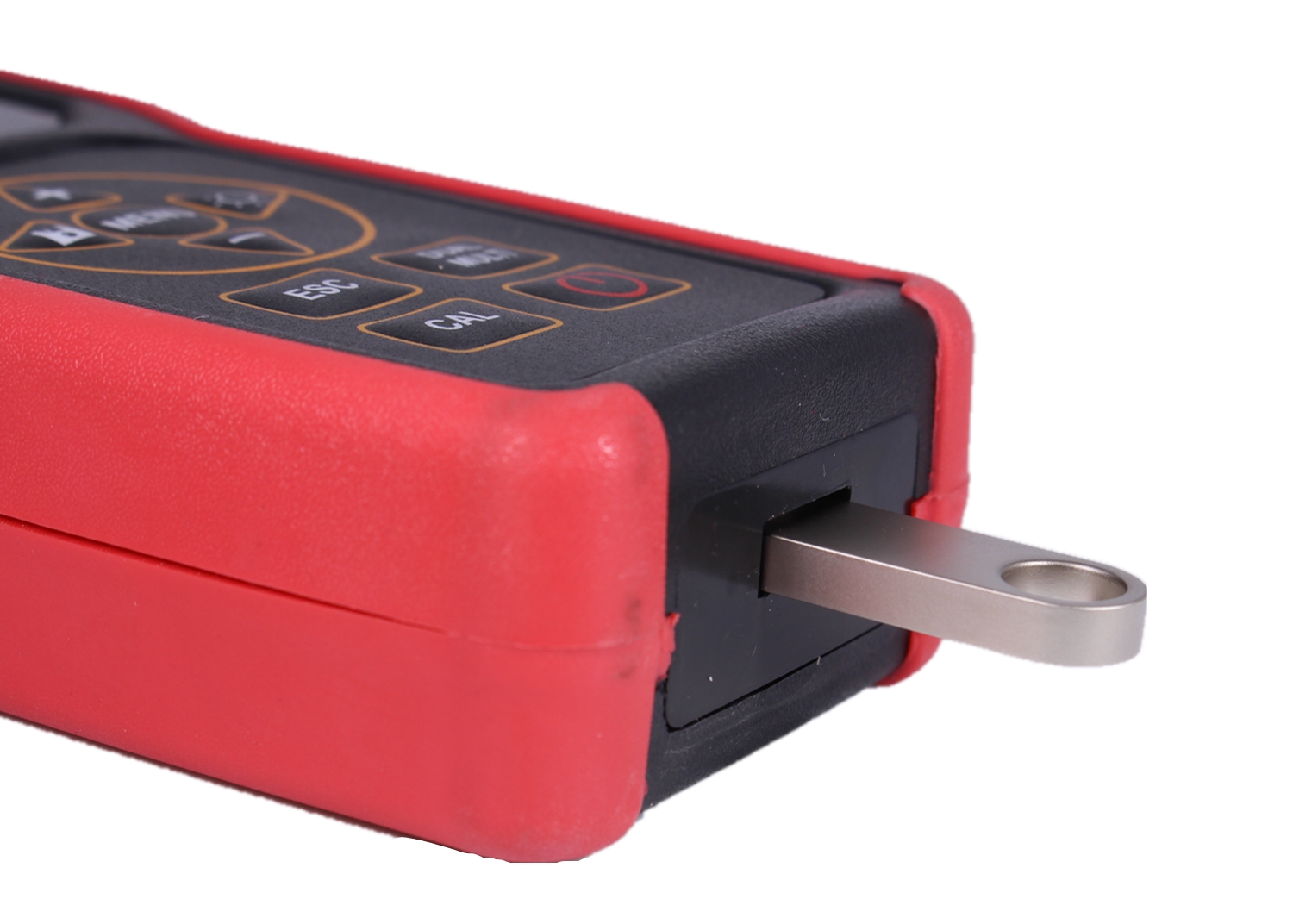

USB for Storage, Plug and Play
Covenient to read thickness values
Massive Data Memory-100,000 data sets
1000 files could be saved , every file could memory 1000 data sets
Statistic Function
Online statistic :Max Min, Standard Devraation
Document Statistic : Max Min Average, mean square error
Probe Connection/Coupling Indicator
OPERATION
Accurancy : 0.1/0.01mm or 0.01/0.001 inch resolution
Exra-long standby time : 200 hours.
