Measuring accuracy：±（0.5%H+0.04mm);H is thickness value;
Measurement cycle：Single point measurement 6 times/per；

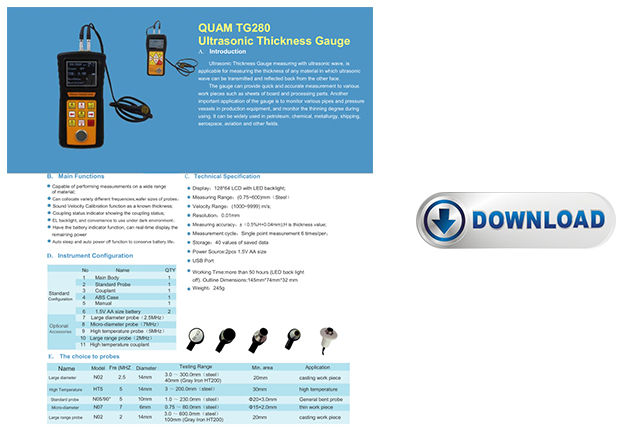

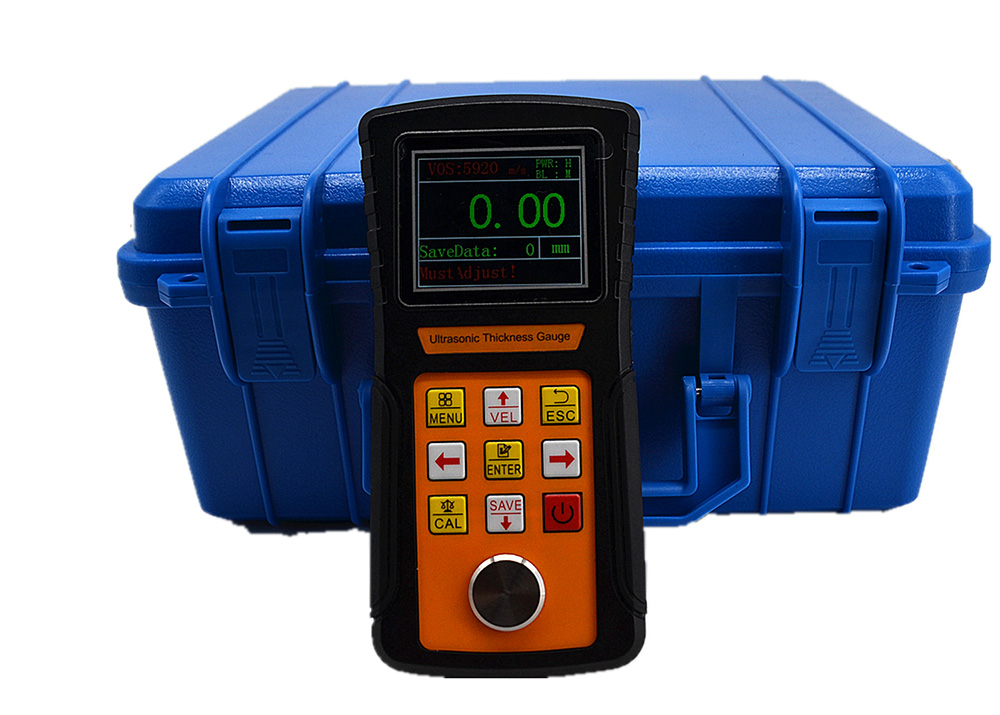

A. IntroductionUltrasonic Thickness Gauge measuring with ultrasonic wave, is applicable for measuring the thickness of any material in which ultrasonic wave can be transmitted and reflected back from the other face. The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.
B. Main FunctionsCapable of performing measurements on a wide range of material; Can collocate variety different frequencies,wafer sizes of probes； Sound Velocity Calibration function as a known thickness; Coupling status indicator showing the coupling status; EL backlight, and convenience to use under dark environment； Have the battery indicator function, can real-time display the remaining power Auto sleep and auto power off function to conserve battery life；
Technical SpecificationDisplay：128*64 LCD with LED backlight; Measuring Range：(0.75~600)mm（Steel） Velocity Range：(1000~9999) m/s; Resolution：0.01mm Measuring accuracy：±（0.5%H+0.04mm);H is thickness value; Measurement cycle：Single point measurement 6 times/per； Storage：40 values of saved data Power Source:2pcs 1.5V AA size Working Time:more than 50 hours (LED back light off). Outline Dimensions:145mm*74mm*32 mm Weight：245g USB Port
