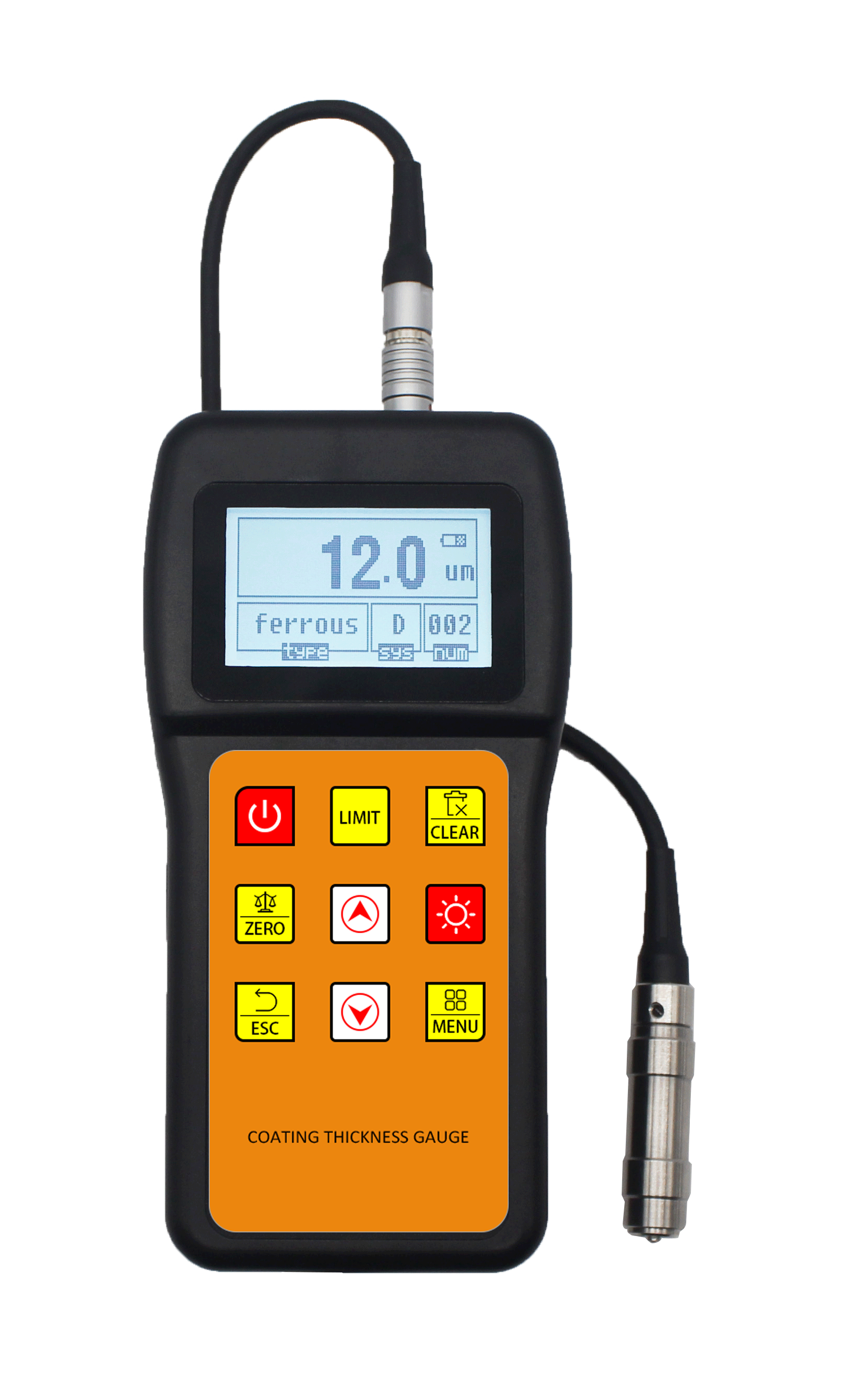

QUAM CT720

QUAM CT720

Various probes optional, probe auto matching.

Durable ruby probe, more wear and precise.

Full metal shell design, sturdy, portable, high reliability.

Alarm function when overrun the settable limiting range.

Five statistics values [MEAN, MAX, MIN, NO., S.DEV] higher measurement accuracy.

Large storage, easy to delete single or multiple saved values..

PC software optional, convenient the data transmission, analysis, printing etc.


0.00
0.00

Product Description

Various probes optional, probe auto matching.

Durable ruby probe, more wear and precise.

Full metal shell design, sturdy, portable, high reliability.

Alarm function when overrun the settable limiting range.

Five statistics values [MEAN, MAX, MIN, NO., S.DEV] higher measurement accuracy.

Large storage, easy to delete single or multiple saved values..

PC software optional, convenient the data transmission, analysis, printing etc.

CT720

Measuring range

0-1250μm, depends on probes, MAX 10mm for the probe F10.

Working principle

Magnetic & Eddy

Substrate

FE / NFE base

Resolution

0.1μm

Display

128x64 LCD with backlight

Accuracy

±2%H+1um   Note: H is thickness reading

Memory

5 files x 100 values

Unit switch

Metric (μm) Imperial (mil)

Working temperature

Operation Temp. : -10~50°C    Storage Temp. :-30~70°C

Power

AA battery 2pcs

Weight

340g

Size

115*67*31mm



Remarks:
With different probe: CT720 can measure the thickness of non-magnetic coating layers covered on magnetic substrate. Such as: non-magnetic (aluminum, chrome, copper, enamel, rubber, paint) covered on magnetic substrate (steel, alloy and magnetic stainless stee
It also can measure the thickness of non-conductive coatings layers covered on conductive substrate. Such as: (enamel, rubber, paint, vanish, plastic anodic-oxide layer) covered on conductive substrate (aluminum, brass, zinc and nonmagnetic stainless steel).


Main feature:
  • Various probes optional, probe auto matching.
  • Durable ruby probe, more wear and precise.
  • Full metal shell design, sturdy, portable, high reliability.
  • Alarm function when overrun the settable limiting range.
  • Five statistics values [MEAN, MAX, MIN, NO., S.DEV] higher measurement accuracy.
  • Large storage, easy to delete single or multiple saved values..
  • PC software optional, convenient the data transmission, analysis, printing etc.

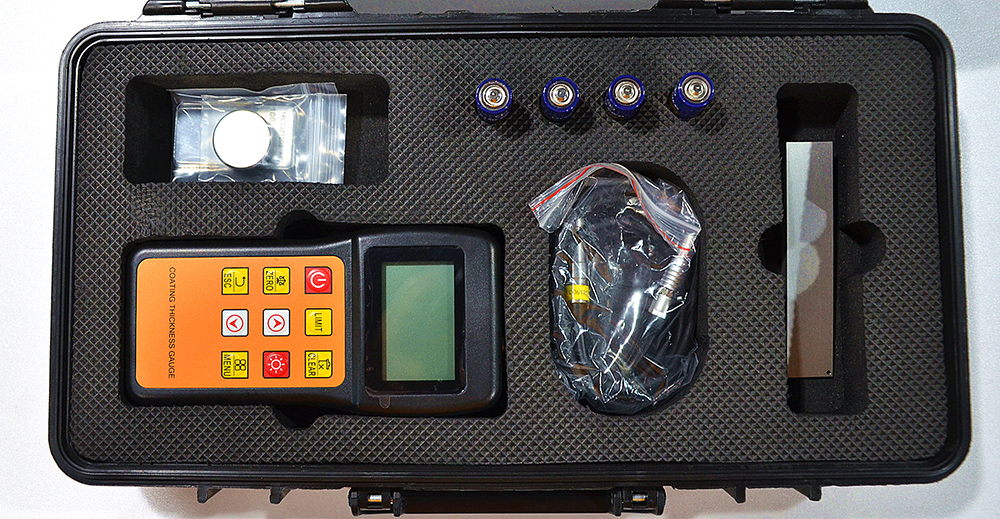

Standard configuration:

Name

QTY

1

Main unit

1

2

Probe (Fe or NFe)

1

3

Calibration piece + Zeroing plate

5+1

4

Operating manual

1

5

Warranty card

1

6

Instrument case

1
