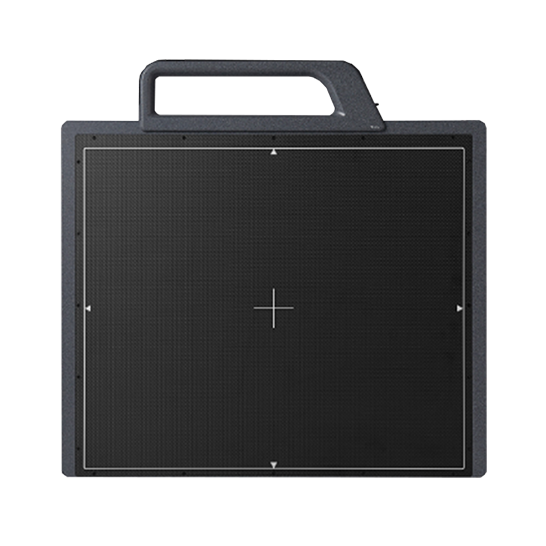

QUAM-6045

QUAM-6045

Applications of DR:

①Industrial Non-destructive Testing Industry,Detection of Special Equipment(Boiler,Pressure Vessel,Pressure Pipeline)

②Establish government actions/standards for aviation ,petroleum,natural gas pipelines,ships,high-speed railways and other industries

③Customs,Airport,Metro and other security agencies


0.00
0.00

Product Description

Applications of DR:

①Industrial Non-destructive Testing Industry,Detection of Special Equipment(Boiler,Pressure Vessel,Pressure Pipeline)

②Establish government actions/standards for aviation ,petroleum,natural gas pipelines,ships,high-speed railways and other industries

③Customs,Airport,Metro and other security agencies


The characteristics of DR：
①DR imaging speed high work efficiency, convenient observation, need not rinse film, on spot evaluation test results
②High sensitivity, clear image is exquisite, high resolution
③To evaluate the feasibility of the image
④Transillumination thickness tolerance over the quality compared with the film
⑤Detector size, large detection range, large amount of information
⑥Digital image storage and transmission through the network is convenient, which can realize remote evaluation or audit
⑦Non-metallic materials according to the imaging quality
⑧On-line inspection of pipelines can be carried out without dismantling heat preservation and without stopping.

Applications of DR:
①Industrial Non-destructive Testing Industry,Detection of Special Equipment(Boiler,Pressure Vessel,Pressure Pipeline)
②Establish government actions/standards for aviation ,petroleum,natural gas pipelines,ships,high-speed railways and other industries
③Customs,Airport,Metro and other security agencies


Scintillator

Gd₂O₂S:Tb

Active Area

358 x 423 mm

Active Pixels

2,816 x 3,328px

Pixel Pitch

127㎛

Limiting Resolution

3.9 lp/mm

A/D Conversion

14/16 bits

Window Time

Min. 13.1 ms
Max. 120 sec.

Interface

Wired : GigE
Wireless : 802.11 a/g/n/ac Wireless LAN

Energy Range

40~330 kVp

Dimension(W x L x H)

399 x 475 x 18 mm

Weight

5.0 kg (11.02 lbs)
Not incl. handle, incl. battery
