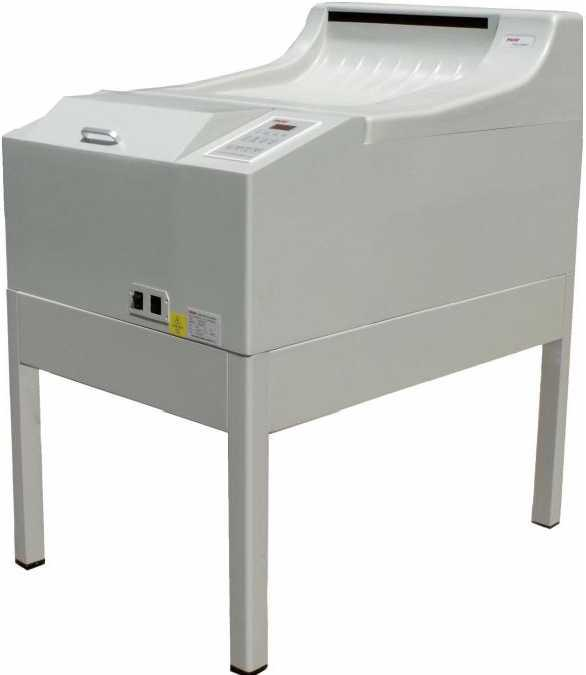

The QUAM430-A is a product with an independent circulation system that truly
caters for field and vehicle use and is suitable for mass film development.
Its unique design of film stop slot can greatly improve the fixing power. Process:
Developing · washing stop · Fixing · small washing · Washing · drying. It has
advanced infrared electronic control system, automatic refill, automatic thermostat,
automatic/manual refill of liquid medicine.
Independent waterless circulation system
bid farewell to waterless troubles
Technical parameters:
Film size: 80×100mm to 430mm×
Flushing cycle: 6-14min(adjustable at one minute interval)
Punching volume: 18-42 sheets/hour (356×432mm) theoretical value
88-260 sheets/hour (80×360mm) theoretical value
Liquid temperature: 20-40 (developing · fixing)
Drying temperature: 20-70
Tank capacity: Developing 13L Fixing 13L Wash 15L
Filling volume: 50-500ml /
Water consumption: 2L/hour during film processing
Power supply: 220V/50Hz/10A
Dimensions: 1050× 720× 1230 L*W*H mm
Rinse long piece reliable, accurate, good quality, more assured
