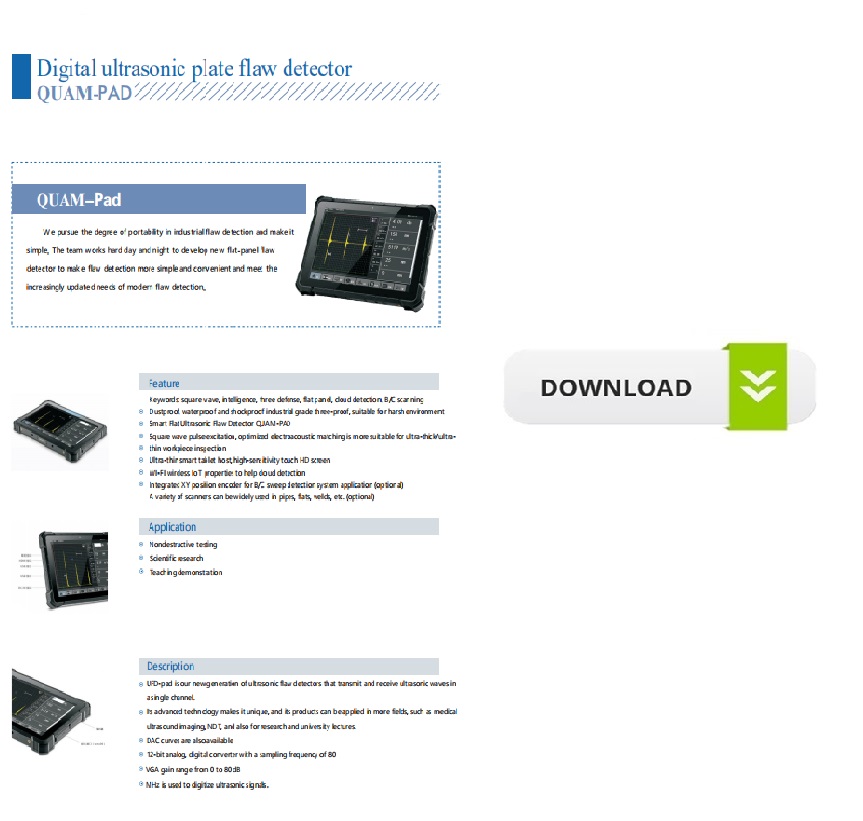

Ultrasonic Flaw Detector QUAM PAD
QUAM PAD is our new generation of ultrasonic flaw detectors that transmit and receive ultrasonic waves in a single channel.
Keywords: square wave, smart, three-proof, flat panel, cloud detection, B / C Scan
Dustproof, waterproof and shockproof industrial grade three-proof, suitable for harsh environment

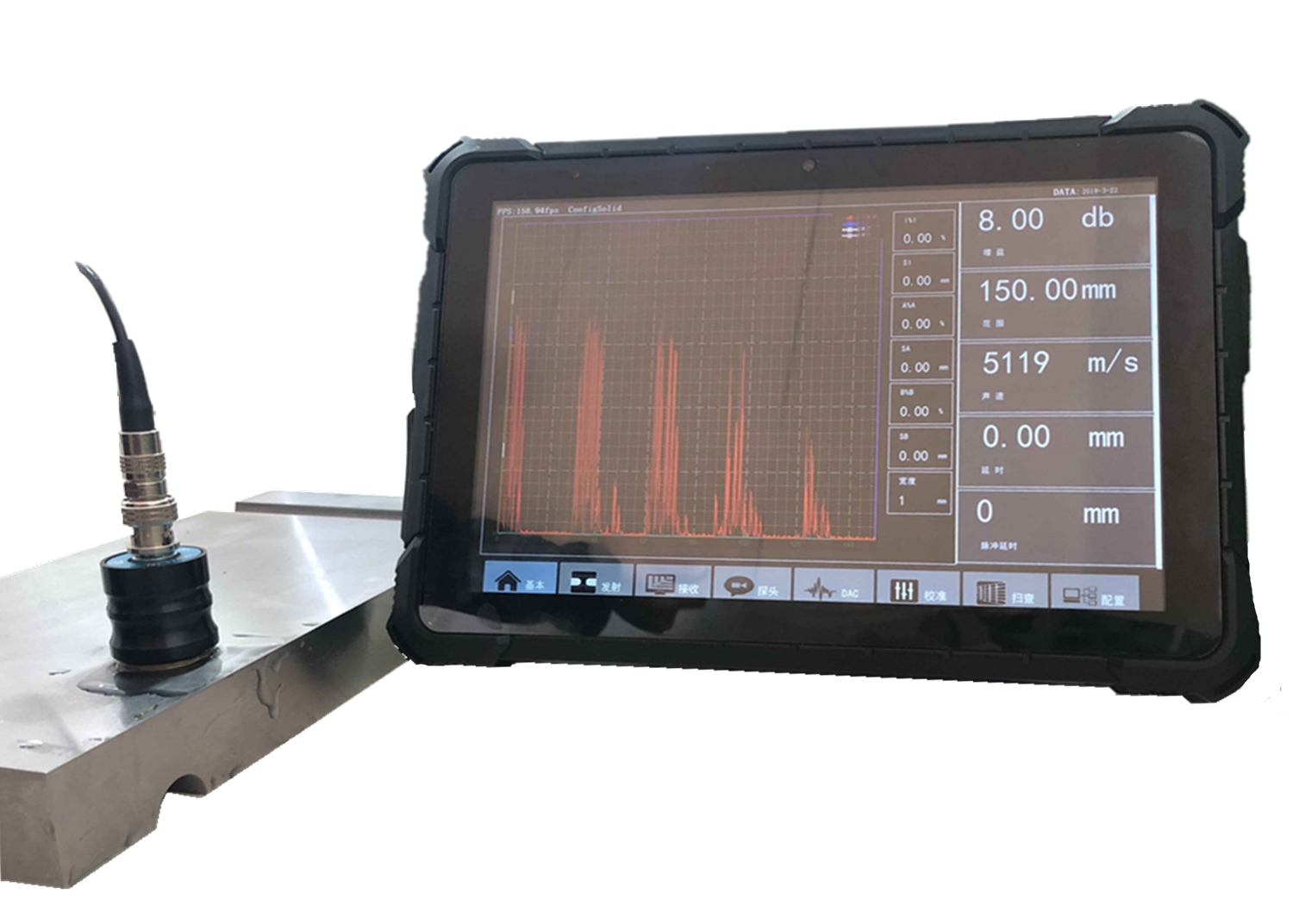

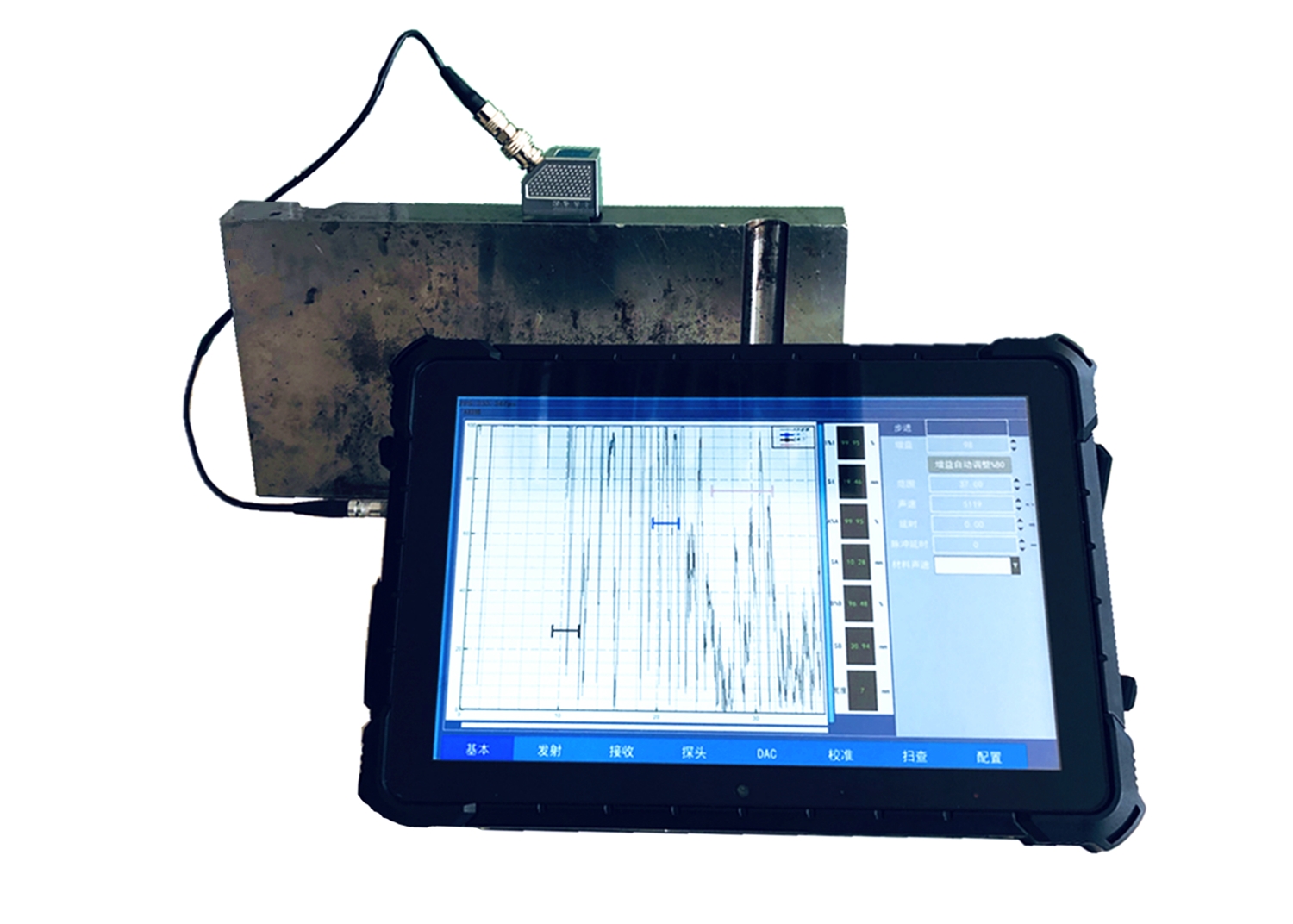

Smart Flat Ultrasonic Flaw Detector UFD -PAD
Square wave pulse excitation, optimized electroacoustic matching is more suitable for ultra-thick/ultra-thin workpiece inspection
Ultra-thin smart tablet host, high-sensitivity touch HD screen
WI-FI wireless IoT properties to help cloud detection
Integrated XY position encoder for B / C sweep detection system applications (optional)
A variety of scanners can be widely used in pipes, flats, welds, etc. (optional)
QUAM PAD is our new generation of ultrasonic flaw detectors that transmit and receive ultrasonic waves in a single channel.
Keywords: square wave, smart, three-proof, flat panel, cloud detection, B / C Scan
Dustproof, waterproof and shockproof industrial grade three-proof, suitable for harsh environment
Smart Flat Ultrasonic Flaw Detector UFD -PAD
Square wave pulse excitation, optimized electroacoustic matching is more suitable for ultra-thick/ultra-thin workpiece inspection
Ultra-thin smart tablet host, high-sensitivity touch HD screen
WI-FI wireless IoT properties to help cloud detection
Integrated XY position encoder for B / C sweep detection system applications (optional)
A variety of scanners can be widely used in pipes, flats, welds, etc. (optional)
Application field
NDT metal flaw detection
Scientific research
Teaching demonstration
Description
UFD-pad is our new generation of ultrasonic flaw detectors that transmit and receive ultrasonic waves in a single channel.
Its advanced technology makes it unique, and its products can be applied in more fields, such as medical ultrasound imaging, NDT, and also for research and university lectures.
VGA gain range from 0 to 80 dB
DAC curves are also available
12-bit analog, digital converter with a sampling frequency of 80
MHz is used to digitize ultrasonic signals.
Performance
Measuring Range 1.0~12000mm
Resolution
0.01mm(<100mm) 1mm(>100mm)
Velocity
500~20000m/s 20fixed velocities
Delay
-20~3400us /resolution : 0.1us
Probe Delay
0~99us /resolution: 0.01us
Auto Calibration
Velocity Calibration &Probe Delay
Calibration
Linear Error
Horizontal error≤0.1%
Vertical error≤3%
Dynamic Range ≥36dB
Sensitivity
≥64dB 200mmФ2 flat-bottomed hole
Dimension (mm) 240×180×50mm
Weight
1.9Kg（including battery pack）
Working Environment
Temperature：-20℃~70℃
Humidity：5%～90%
