RM800

RM800

Electromechanical integration design, small volume, light weight, easy to use;

Using DSP chip to control and data processing, high speed, low power consumption;

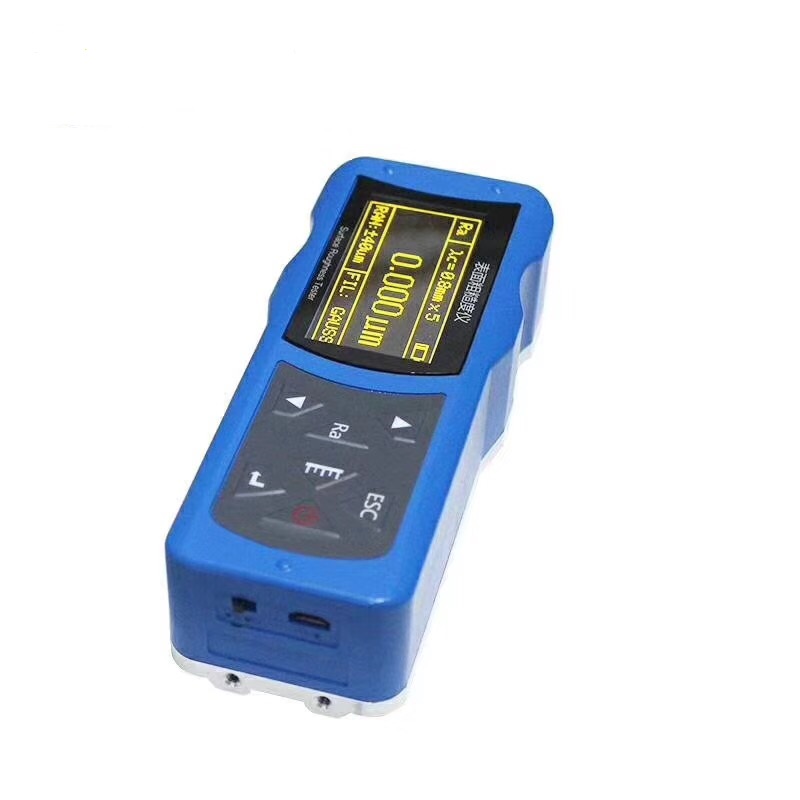

128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;

Intuitive and rich display information, can display all the parameters and graphics;


0.00
0.00

Product Description

Electromechanical integration design, small volume, light weight, easy to use;

Using DSP chip to control and data processing, high speed, low power consumption;

128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;

Intuitive and rich display information, can display all the parameters and graphics;


FIRST DEBUT! NEW PRODUCT

RM800

Testing parameters

Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx;

Measuring range (um)

Ra: 0.005-16.000

Rz: 0.02-160.00

Sample length (mm)

0.25, 0.80, 2.50

Evaluation length(mm)

(1-5)L

Maximum drive stroke

17.5mm/0.7inch

Indication accuracy

0.001

Indication error

±(7-10)%

Variability

<6%

Data Storage

100 groups

Power

Rechargeable li-battery

Working temperature

-20℃~40℃

Relative humidity

<90%

Size

158mmx63.5mmx46mm

Weight of Host

0.3kg




Main feature:
  • Electromechanical integration design, small volume, light weight, easy to use;
  • Using DSP chip to control and data processing, high speed, low power consumption;
  • 128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
  • Intuitive and rich display information, can display all the parameters and graphics;
  • Compatible with ISO, DIN, ANSI, JIS national standards;
  • Residual quantity icon, prompting the user to charge;
  • Continuous working time: more than 20 hours.
  • Real-time clock settings and display, convenient data recording and storage.
  • With automatic dormancy, automatic shutdown and power saving function
  • Reliable control motor to go dead circuit and software design
  • Measurement information display, menu prompt information, false information and switch machine and other tips that information;
  • Can be connected to a computer and printer;
  • Optional different sensor, measuring platform, mini printer, extension rod and other accessories.
  • Plastic shell, inspired by “TRANSFORMERS” stylish design, portable, high reliability.
  • High price performance

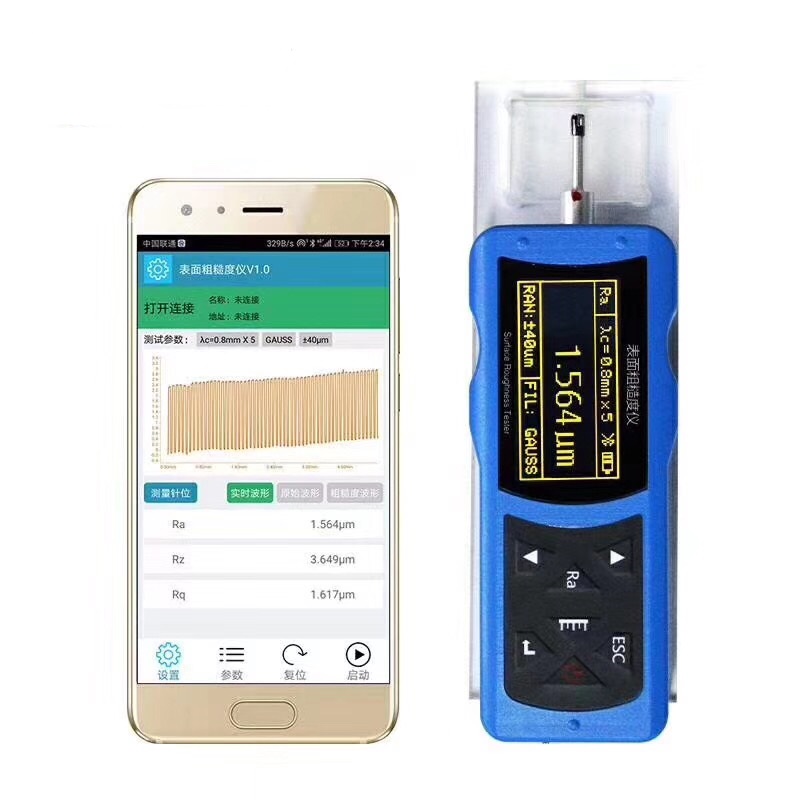

  • Bluetooth function
  • Can acquire, manage data by APP.

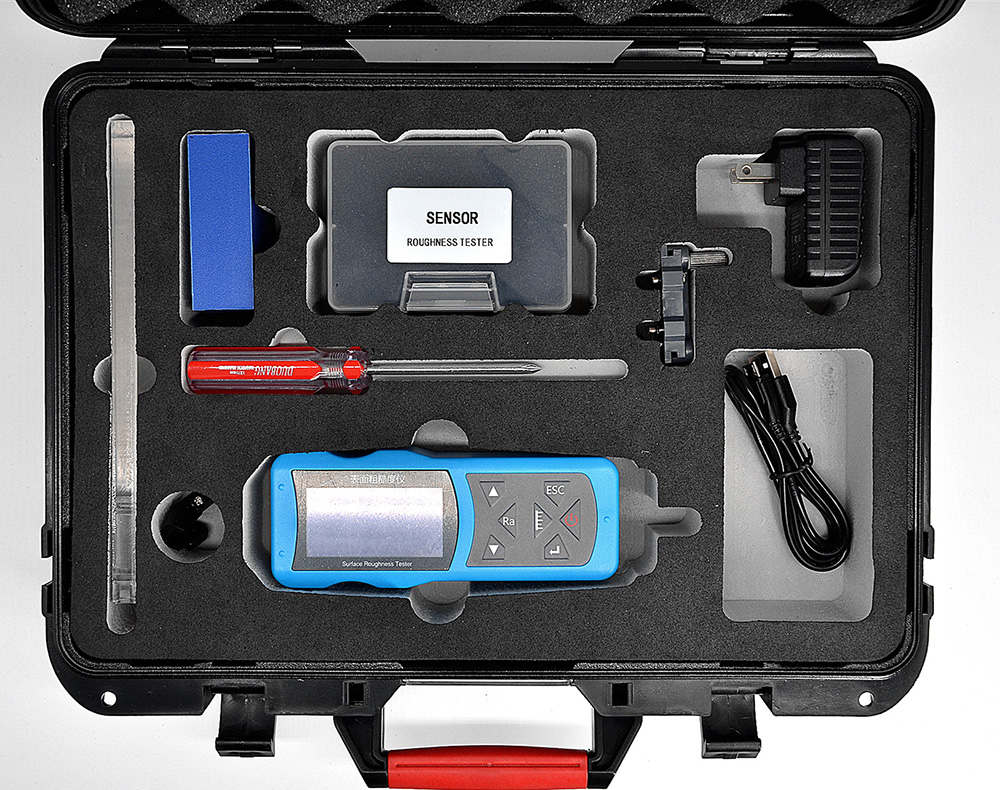

Standard configuration:

Name

QTY

1

Host

1

2

Standard Sensor

1

3

Calibration block and bracket

1

4

Bracket

1

5

Charger

1

6

Adjustable support

1

7

Operating manual

1

8

Warranty card

1

9

Certificate of approval

1

10

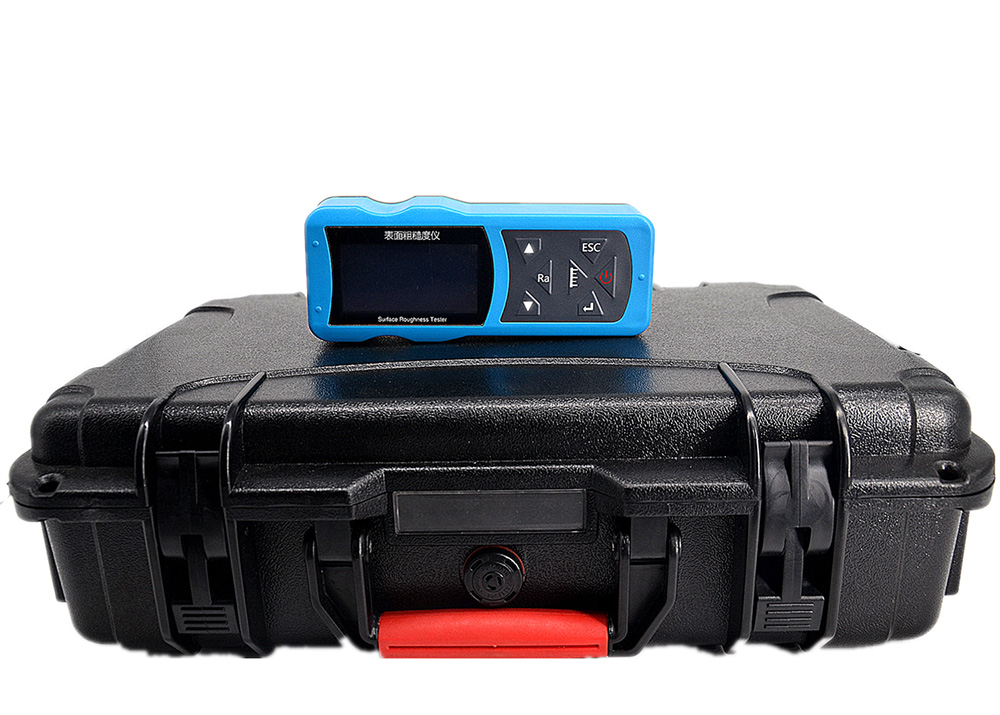

Instrument case

1
