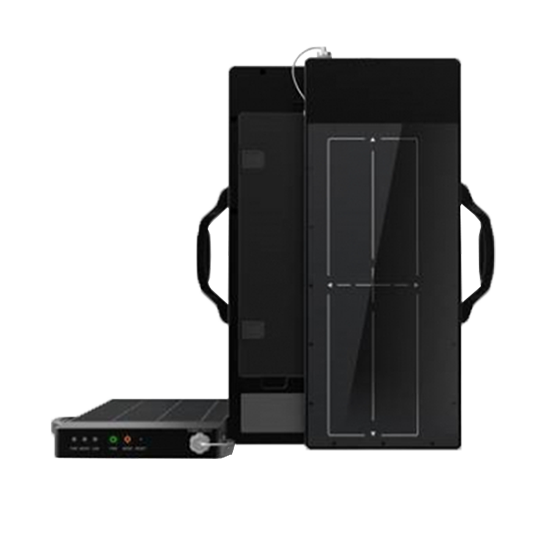

QUAM-1219

QUAM-1219

Applications of DR:

①Industrial Non-destructive Testing Industry,Detection of Special Equipment(Boiler,Pressure Vessel,Pressure Pipeline)

②Establish government actions/standards for aviation ,petroleum,natural gas pipelines,ships,high-speed railways and other industries

③Customs,Airport,Metro and other security agencies


0.00
0.00

Product Description

Applications of DR:

①Industrial Non-destructive Testing Industry,Detection of Special Equipment(Boiler,Pressure Vessel,Pressure Pipeline)

②Establish government actions/standards for aviation ,petroleum,natural gas pipelines,ships,high-speed railways and other industries

③Customs,Airport,Metro and other security agencies


The characteristics of DR：
①DR imaging speed high work efficiency, convenient observation, need not rinse film, on spot evaluation test results
②High sensitivity, clear image is exquisite, high resolution
③To evaluate the feasibility of the image
④Transillumination thickness tolerance over the quality compared with the film
⑤Detector size, large detection range, large amount of information
⑥Digital image storage and transmission through the network is convenient, which can realize remote evaluation or audit
⑦Non-metallic materials according to the imaging quality
⑧On-line inspection of pipelines can be carried out without dismantling heat preservation and without stopping.

Applications of DR:
①Industrial Non-destructive Testing Industry,Detection of Special Equipment(Boiler,Pressure Vessel,Pressure Pipeline)
②Establish government actions/standards for aviation ,petroleum,natural gas pipelines,ships,high-speed railways and other industries
③Customs,Airport,Metro and other security agencies


Scintillator

Gd₂O₂S : Tb

Active Area

292.6 x 97.6 mm

Active Pixels

2,304 x 768px

Pixel Pitch

127 ㎛

Limiting Resolution

3.9 lp/mm

A/D Conversion

14/16 bits

Interface

Wired : GigE
Wireless : 802.11 a/g/n/ac Wireless LAN

Energy Range

40~330 kVp, Ir-192

Dimension(W x L x H)

400 x 160 x 30 mm

Weight

2.2 kg (4.85 lbs)
