Ultrasonic flaw detector

Ultrasonic flaw detector

Automated calibration of transducer Zero Offset aor Velocity;

Automated gain, Peak Hold and Peak Memory;

Automated display precise flaw location(Depth d、level p,distance s,amplitude,sz dB,ф);

Automated switch (Depth d,level p,distance s);

100 independence setup,any criterion can be input freely, we can work in the scene without test block;


0.00
0.00

Product Description

Automated calibration of transducer Zero Offset aor Velocity;

Automated gain, Peak Hold and Peak Memory;

Automated display precise flaw location(Depth d、level p,distance s,amplitude,sz dB,ф);

Automated switch (Depth d,level p,distance s);

100 independence setup,any criterion can be input freely, we can work in the scene without test block;

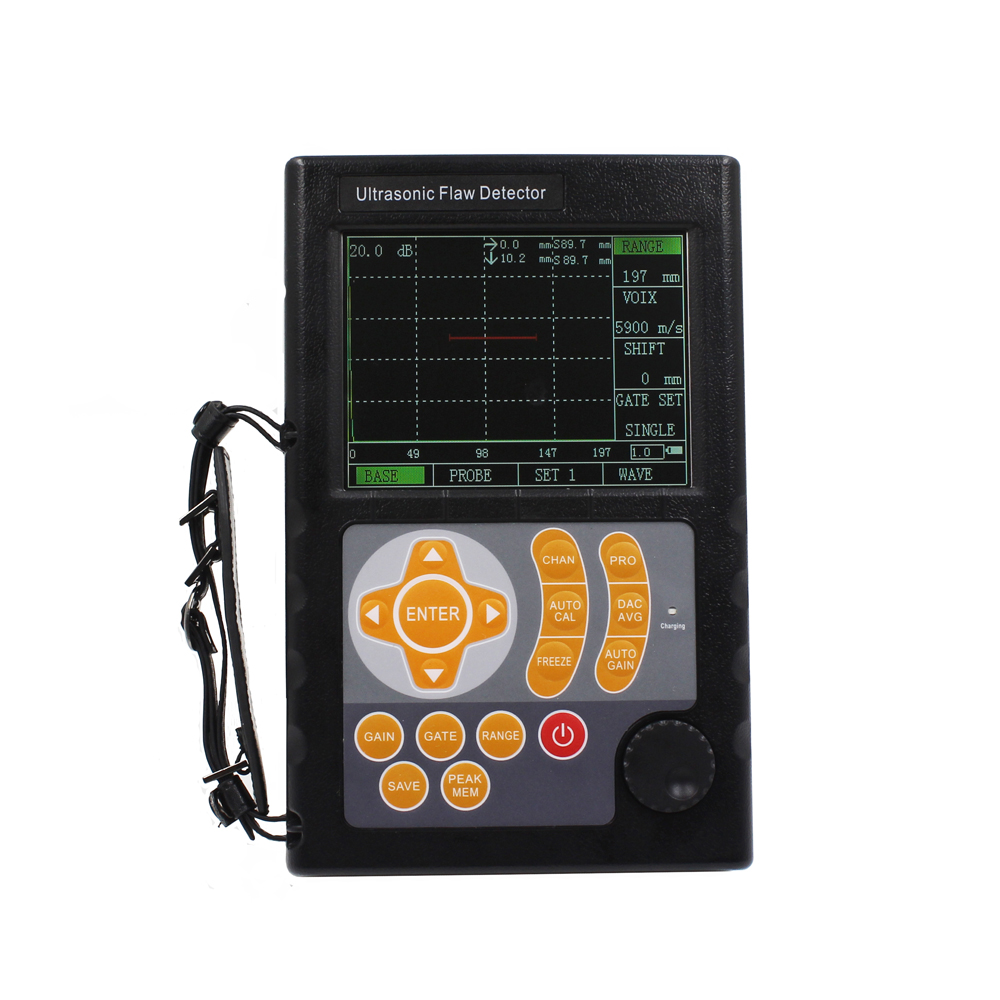

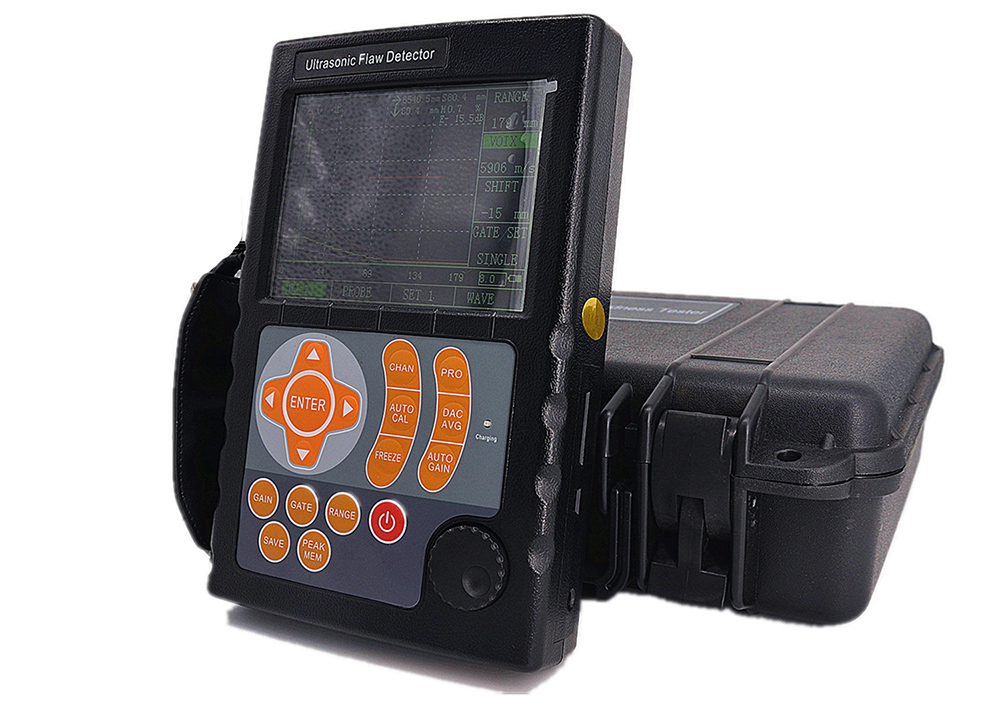

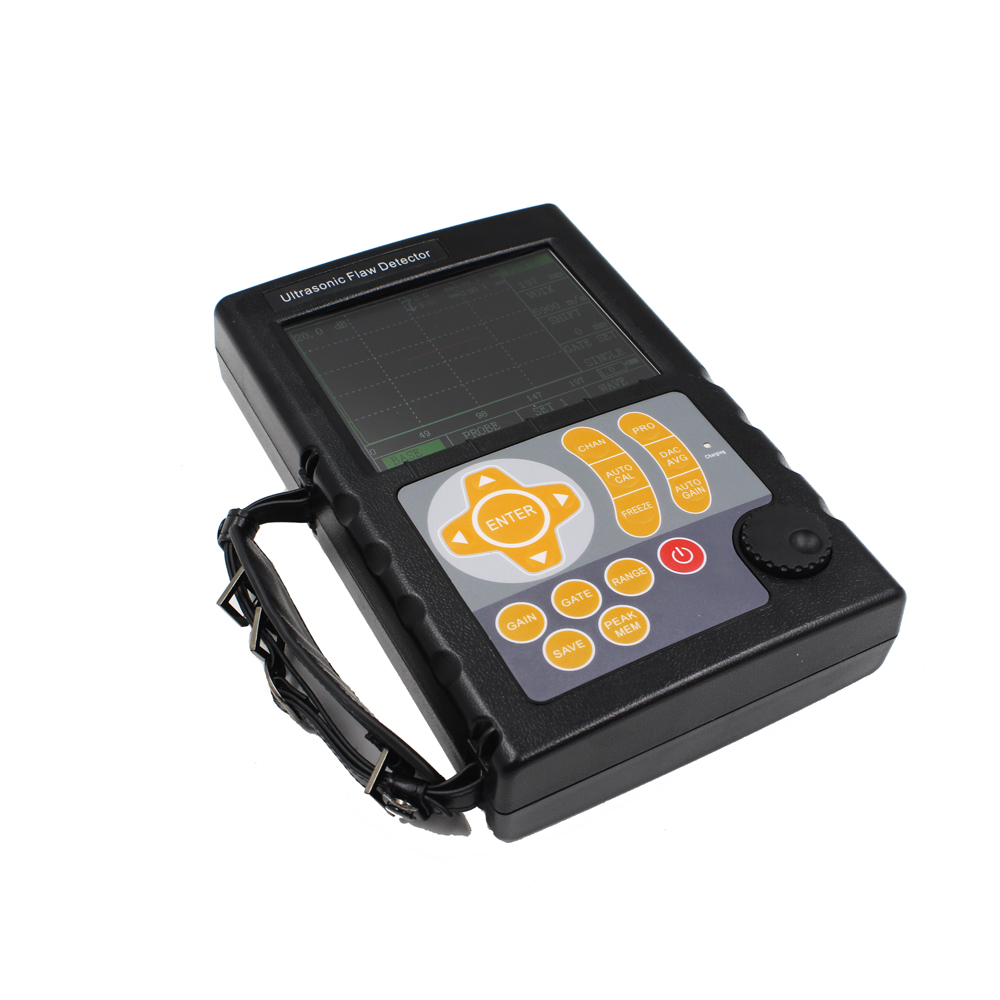

UT600

Measuring range

0-10000mm

Material Velocity

1000 m/s～15000m/s

Gain

0-130dB

Working Frequency

0.2-20MHz

Waveform memory

500

Channels

500

D-Delay

-20µs～+3400µs

Resolution

0.1mm(2.5mm~100mm)   1mm(>100)

P-Delay

0µs～99.99µs

DAC

√

AVG

√

Built-in Standards

√

Vertical linear error

≤3%

Horizontal linear error

≤0.2%

Sensitivity Leavings

≥62 dB

Dynamic range

≥32dB

Recoring Time

5mins

PC Software

√

Temperature

-20℃~50℃

Humidity

20%～90%RH

Power

7.4V 4800mAh

Working time

>10 hours

Display

LED true color

Size

238mm*155mm*46mm

Weight

1.0kg



Main feature:
  • Automated calibration of transducer Zero Offset aor Velocity;
  • Automated gain, Peak Hold and Peak Memory;
  • Automated display precise flaw location(Depth d、level p,distance s,amplitude,sz dB,ф);
  • Automated switch (Depth d,level p,distance s);
  • 100 independence setup,any criterion can be input freely, we can work in the scene without test block;
  • Big memory of 300 A graph.
  • Gate and DAC alarm；Acoustic-Optical alarm;
  • The embeded software can be online updated;
  • Li battery, continue working time up to 10 hours;
  • Display freeze;
  • Automated echo degree;
  • Angles and K-value;
  • Lock and unlock function of system parameters;
  • Electronic clock calendar ;
  • Two gates setting and alarm indication;
  • High-speed capture and very low noise;
  • DAC,AVG;
  • Automated calculate the size of the flaw with w ide bottom type in AVG function.
  • 6dB DAC functions;
  • Provides high contrast viewing of the waveform from bright, direct sunlight to completae darkness and easy to read from all angles;
  • Powerful PC software and reports can be export to excel;

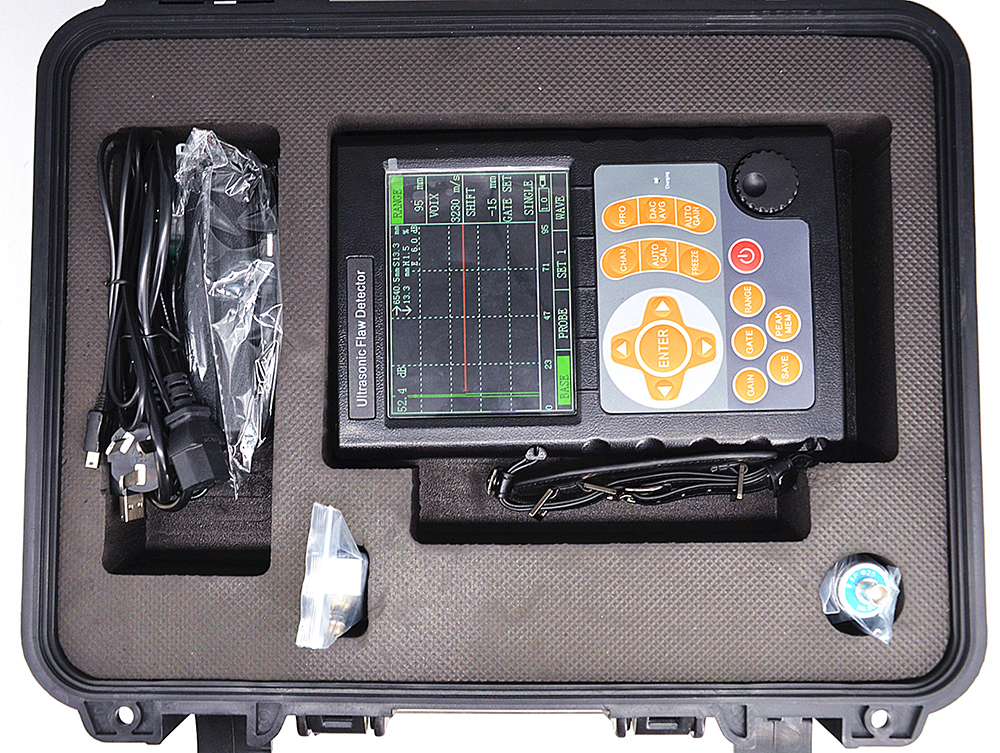

Standard Configuration:

Name

QTY

1

Main unit

1

2

1.5A/9V power adaptor

1

3

probe connecting cable

2

4

Instrument case

1

5

Instruction manual

1

6

Straight probe 10mm 2.5MHz

1

7

Angle probe 13x13 K2 2.5MHz

1

8

Warranty card

1
