MT100/200/390

MT100/200/390

Three power supply modes can be selected freely:

*Be directly connected to AC power supply for place with direct insert AC power supply;

*For place without direct insert AC power supply, AC magnetized power supply (AC battery pack) can be used to realize AC magnetization inspection function.


0.00
0.00

Product Description

Three power supply modes can be selected freely:

*Be directly connected to AC power supply for place with direct insert AC power supply;

*For place without direct insert AC power supply, AC magnetized power supply (AC battery pack) can be used to realize AC magnetization inspection function.


Roduct Characteristics
Three power supply modes can be selected freely:
*Be directly connected to AC power supply for place with direct insert AC power supply;
*For place without direct insert AC power supply, AC magnetized power supply (AC battery pack) can be used to realize AC magnetization inspection function.
*DC magnetized power supply (DC battery pack) also can be selected to realize function of DC magnetization.
*AC magnetized power supply (AC battery pack) has the protection function of stable voltage output, over-charge, over-current, over-discharge.
*Automatic power off will be started when the lifting force is insufficient, so as to ensure the detection sensitivity.
*Power display function, which can display current battery capacity, as well as with sound-light alarm function.
*Built-in microcomputer chip, stable output voltage to ensure detection sensitivity.
*Adjustable magnetization intensity
*Special working pockets, which can carry battery pack, magnetic suspension, contrast agent, magnetic yoke probe, etc.


Technical parameter
*Working temperature:  -10～+40℃
*Storage temperature: -20～50℃
*Relative humidity: No condensing<80%
*Operation temperature rise: <18℃
*Duty cycle: >50%
*Sensitivity: type A1 standard specimen 15/50 grooves are clearly displayed
*Minimum AC boost: >4.5kg(44N), maximum AC boost: 7kg (68.6N)
*Minimum DC boost: >18.1kg(177N), maximum DC boost: 23kg (225N)

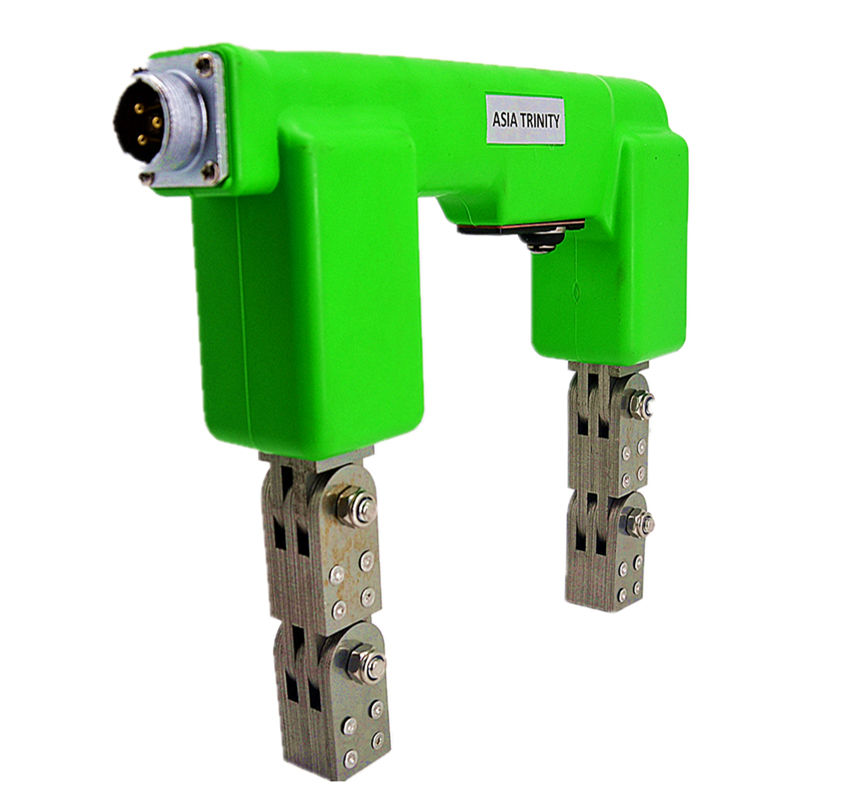

Magnetic yoke flaw detector

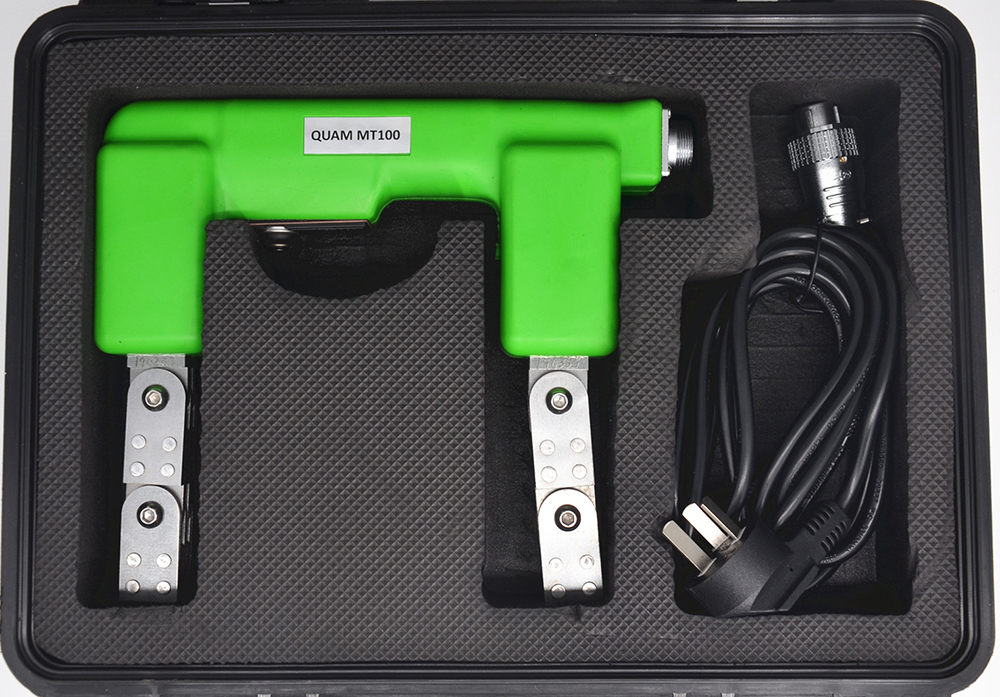

MT100

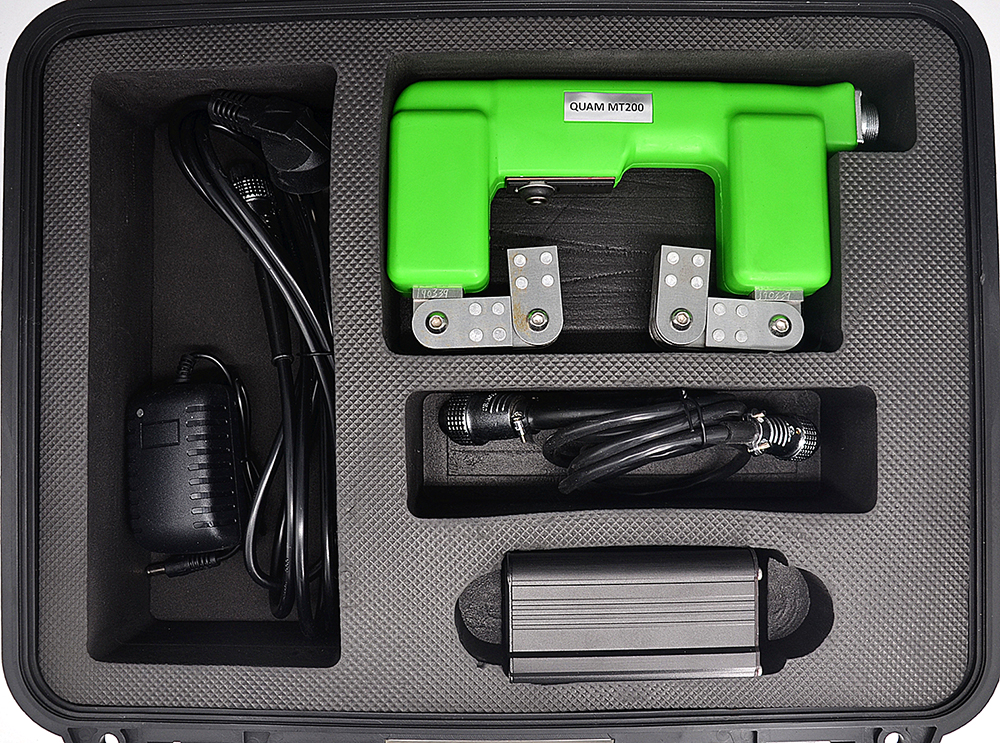

MT200

MT230

MT390

Electrode spacing

0～210mm

0～210mm

0～210mm

0～210mm

Maximum current

2.8A

2.8A

2.8A

2.8A

Weight

2.2kg

2.2kg

2.2kg

2.2kg

Main function

AC magnetization (direct insert power supply)

AC magnetization (direct insert power supply);

DC magnetization (with DC magnetization power supply)

AC magnetization (direct insert power supply)

AC magnetization (with AC magnetization power supply)

AC magnetization (direct insert power)

AC magnetization (with AC magnetization power supply)

DC magnetization (with DC magnetization power supply)
