Sensitivity: show clear in A（15/100）standard test piece
Detection speed: more than 6 m/min
Test frequency: 2 seconds on, 2 seconds off.
Overall dimension: 300×140×200mm
Weight: the main engine is 9kg

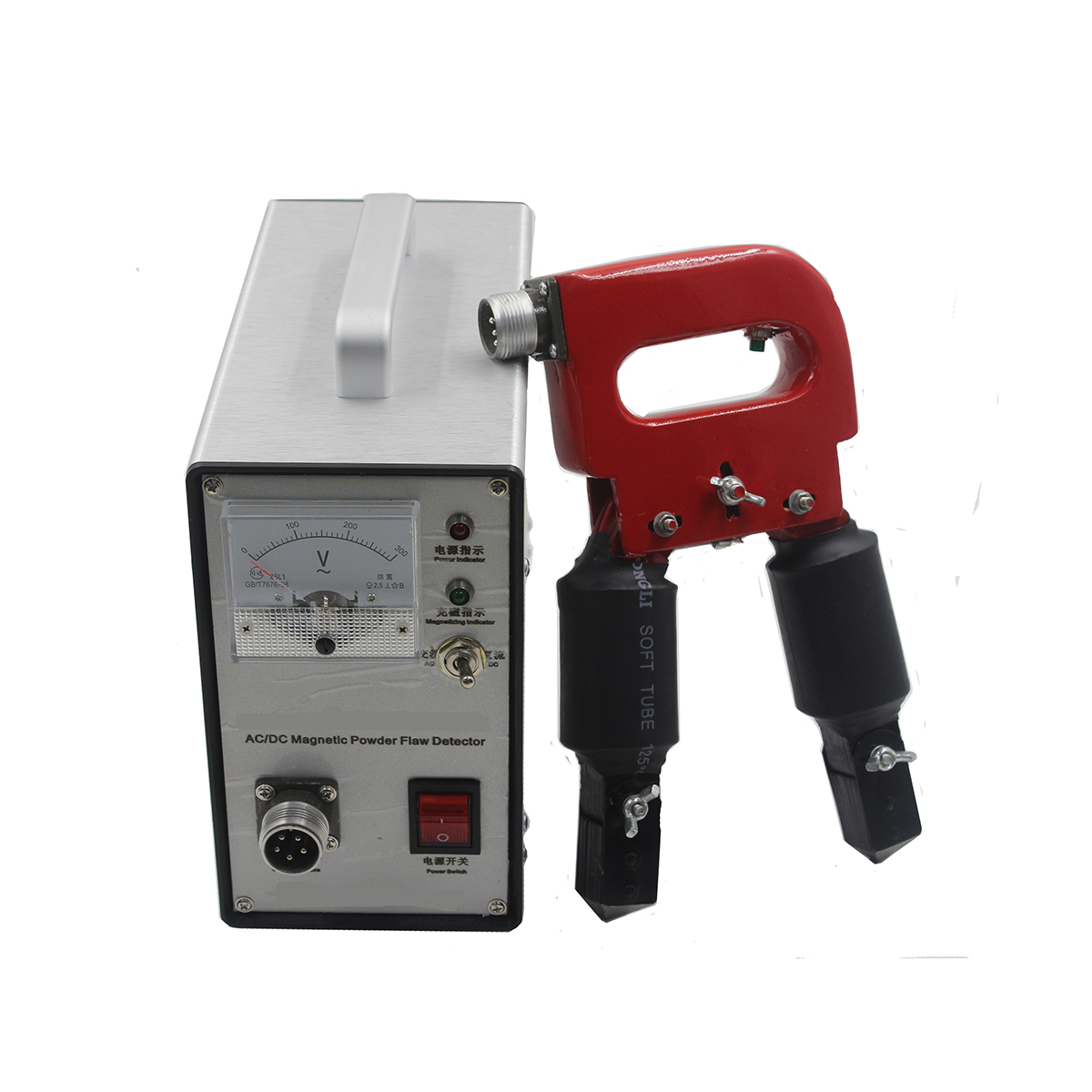

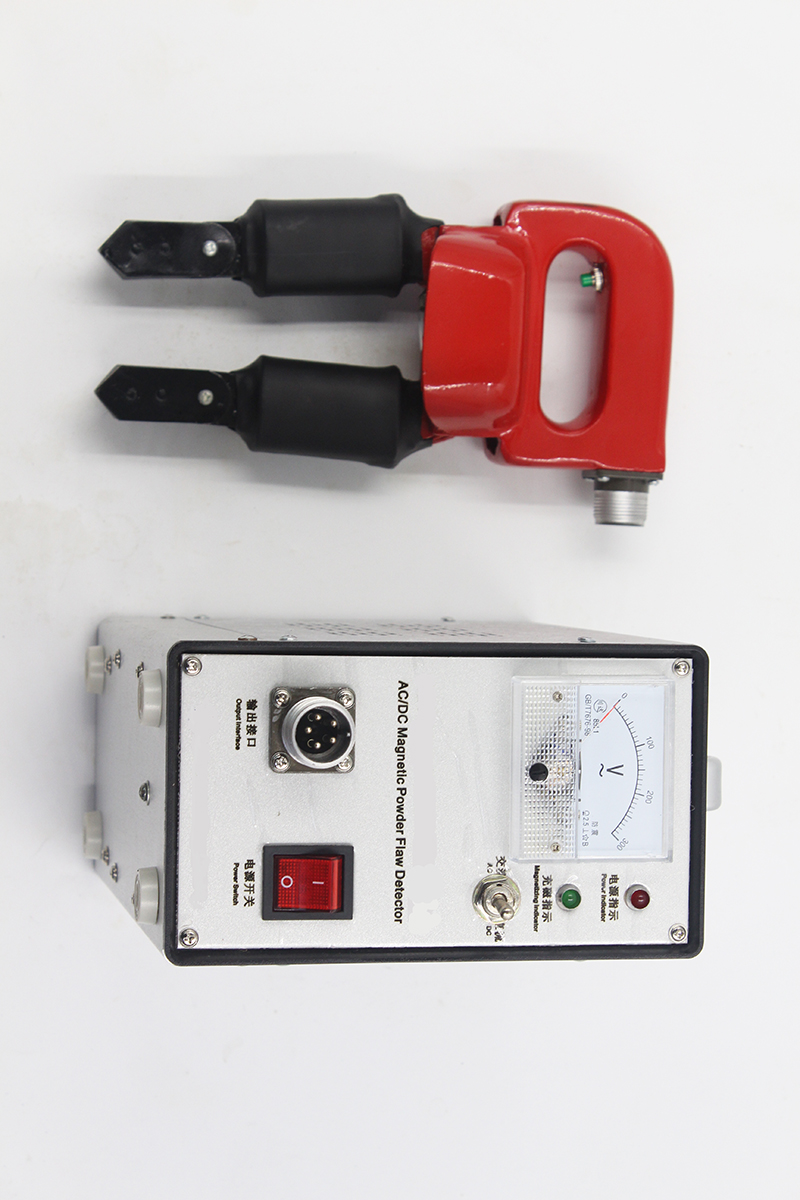

Overview：MT500 Portable Magnetic Particle Flaw Detector adopts the controlled silicon non-contacting switch, it is low noise, long lifetime and simple operation, suitable for on-site and laboratory use.
Function:Mainly used to detect ferromagnetic workpiece surface and near surface crack, DC magnetization can detect the deep cracks. Drying or wetting detection is all applicable.
Industry Applications:Boiler pressure vessel, steel structure, forging, casting, aviation standard parts, machining parts.
Main Engine Technical Parameters:Power supply: AC220V±10% 50HZ Sensitivity: show clear in A（15/100）standard test piece Detection speed: more than 6 m/min Test frequency: 2 seconds on, 2 seconds off. Overall dimension: 300×140×200mm Weight: the main engine is 9kg
